Product Details
| Make | Model | Submodel | Years |
|---|---|---|---|
| Toyota | Tacoma | 2005–2023 | |
| Toyota | Tacoma | 2024–Present |
Vehicle Fitment: Toyota Tacoma 24+ – Precision-engineered for all trims to enhance stability, handling, and off-road control.
CORE Advantage: Eliminates axle wrap, improves traction, and maximizes suspension articulation, giving you superior handling and durability on any terrain.
Adjustability: Fully adjustable while installed, accommodating stock height up to 8” lifts for precise axle centering, pinion angles, and suspension tuning.
Construction: Made from high-strength 7075 aluminum with Johnny Joints at both ends, providing extreme durability, articulation, and vibration dampening.
Two-Stage Powder Coating: Zinc primer base and top coat available in 10 vibrant colors protect against corrosion and allow for personalized styling of your rig.
Warranty and Origin: Proudly manufactured in the United States, our product includes a lifetime warranty on all non-wear items, providing you with confidence and peace of mind in your purchase.
Built With
Rear Lower Control Arms Built With 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper Control Arms Built With 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar Built With 1.5” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
Construction & Materials
Rear Lower Control Arms Built With 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Upper Control Arms Built With 2” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1.25” x 12 TPI - 2.625” long threads.
Rear Track Bar Built With 1.5” 7075 Aluminum. Forged Johnny Joints on both adjustable ends with 1” x 14 TPI - 2.32” long threads.
| Vehicle | Toyota Tacoma (05–23) |
| Brand | CORE 4X4 |
| Color | Black or Blue or Charcoal or Green or Light Green or Orange or Purple or Red or White or Yellow or Raw Aluminum or Custom Color - Other than what is listed above. Extra charge varies. We will reach out after order is placed. |
| Hardware | No Hardware or Complete Kit |
| Placement on Vehicle | Rear Upper, Rear Lower, Rear |
| Mounting Style | Bolt-On |
Optimize Your Vehicle's Performance

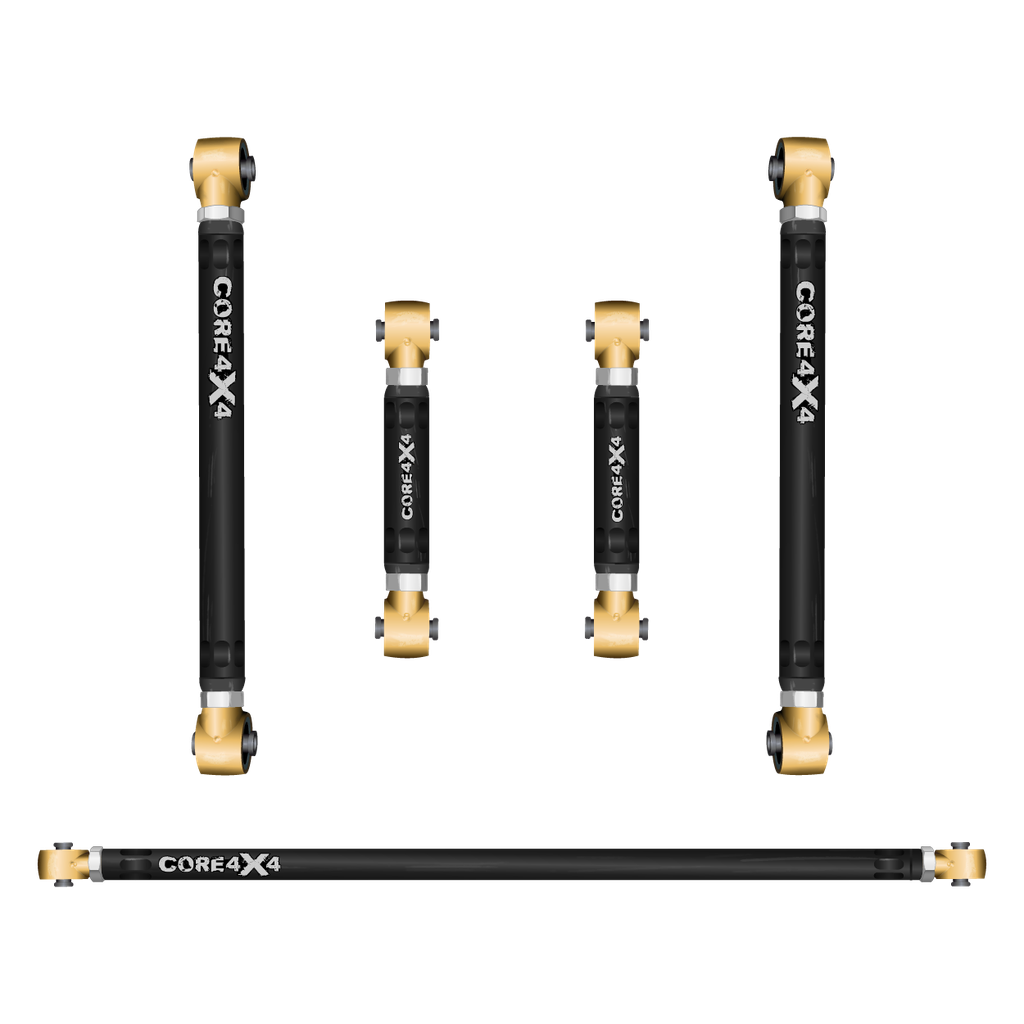

Unlock the full potential of your Toyota Tacoma (2024-Present) with the Aluminum Series Rear Suspension Kit. This complete suspension upgrade enhances stability, handling, and adjustability, providing unmatched control in any environment—from daily driving and towing to high-speed off-road racing and technical rock crawling.
Key Features Benefits
- Superior strength lightweight performance – Crafted from premium 7075 Aluminum, these components offer exceptional strength while being significantly lighter than steel alternatives, ensuring improved responsiveness and efficiency.
- Unrivaled suspension flexibility – Featuring RockJock Johnny Joints at both ends, this kit delivers maximum articulation, vibration dampening, and off-road flexibility, outperforming stock bushings and other aftermarket options.
- Complete axle alignment control – Provides full adjustability for precise axle centering, optimal pinion angles, and perfect rear-end alignment, significantly enhancing stability and handling at any lift height.
- Elimination of wheel hop suspension deflection – Reduces axle wrap and unwanted suspension movement, improving traction, ride quality, and overall vehicle control—especially under hard acceleration or when tackling uneven terrain.
Total Control with High Adjustability
This kit is designed to accommodate a wide range of lift heights, ensuring your Tacoma maintains correct alignment, optimal suspension geometry, and long-term durability. It supports lift setups from stock height to 8 inches—for lifts beyond 8 inches, contact us for custom solutions.
Durable Two-Stage Powder Coating
Each 7075 Aluminum component undergoes a two-stage powder coating process to provide maximum corrosion resistance and a long-lasting finish. The process includes a zinc primer base coat for superior rust protection, followed by a custom top coat available in 10 different colors, allowing you to personalize your Tacoma’s suspension setup.
Proudly Made in the USA
Every component in this kit is proudly designed and manufactured in the USA at our facility in Orem, UT. We oversee every step of the manufacturing process to ensure precision engineering, strict quality control, and exceptional craftsmanship. By choosing our Aluminum Series, you’re investing in American innovation and industry-leading suspension technology.
Optional Hardware Upgrade
This kit is designed to install using factory hardware. For those dealing with stubborn or rusted bolts, we offer optional Grade 8 hardware kits separately, ensuring a seamless installation process.
