Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

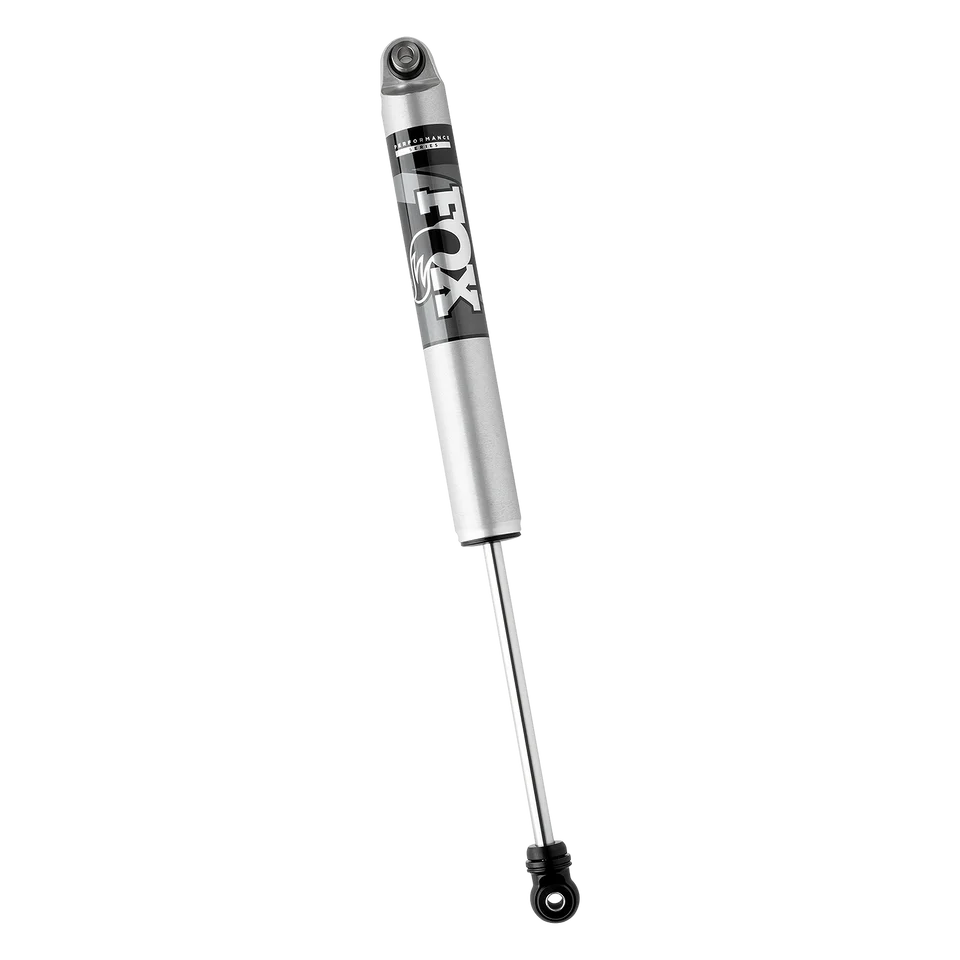

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 29.62
- Compressed - 18.5
- Travel - 11.12
- Top Mount - Eyelet
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 2018 - Present |
| Vehicle | Jeep Wrangler JL / JLU (18–Present) |
| Brand | Fox |
| Placement on Vehicle | Rear |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
JH
Joe Hu
Sep 24, 2025
★
★
★
★
★
Amazing! I put all my new control arms and it drives a lot smoother and looks great!!!
M
Matt
Mar 23, 2024
★
★
★
★
★
The best products on the market. 95% of my xj is core 4x4 products
P
Paul
Mar 24, 2023
★
★
★
★
★
I've been having trouble with the track bar (on my 2nd gen Dodge) since I installed the 3rd gen Synergy adapter bracket and a 3rd gen stock bar.. oddly, they call it a '3rd gen bracket' and the stock 3rd gen bar doesn't quite fit, making contact with the bracket. I had attempted to clearance the bracket but it was still making contact and I could feel it over large bumps.
I reached out to a lot of companies, but Core 4x4 offered to make a custom bar for the application with adjustability and dual Johnny joints. The first pass on it didn't work but they sent me out another passenger side end that made it fit incredibly well.
This was all done solely over email/descriptions/pictures/measurements.
Bar is super high quality and heavy duty, made in the US by a family owned company and carries a lifetime warranty. The customer service was responsive and superb, and the price was a lot less than I expected.
MN
Mike Nielsen
Nov 23, 2025
★
★
★
★
★
The customer service is first class. I had an issue with a track bar I installed on my F350. I don’t have any other Core 4x4 parts yet, but with the way I was treated, I know their parts are well done, because they went above and beyond to make sure I was made whole. They wouldn’t be in business if they had to take care of a lot of people like they took care of me. Will definitely be back when it’s time to build the Jeep!
KK
Kevin Kinard
Oct 24, 2025
★
★
★
★
★
Great product, excellent customer service. I mistakingly ordered a track bar for the wrong year model and Korby helped me out by sending me the correct part that I needed no questions asked. I highly recommend.
BS
Bailey Smith
Mar 23, 2025
★
★
★
★
★
Core 4x4 excels with precision and service and keeps nothing else higher in mind. Everyone I've met at the company is very honest and down to earth, 10/10 would recommend.
TG
Travis Grimm
Mar 23, 2024
★
★
★
★
★
To start off if you're looking to upgrade your control arms definitely hit this company up. Great product, easy install of the product, with three different tiers everything is priced pretty good, I'm a sticker guy and they sent a sticker for each arm each track bar and also three extra ones so the extra are on the Jeep the advertise them for sure. If you're reading this review I highly recommend you to check their website out.
SA
Samuel “SamDaman904” Anscher
Mar 23, 2024
★
★
★
★
★
I meant to put this reviewing about a year ago now, but ever since I’ve had the core 4 x 4, upper and lower control arms on my 2017 ram 1500, they have worked flawlessly leave been on many offering chips, and I’ll definitely be buying new accessories from them in the future and their new upper control arms that they’re offering for all of the ram trucks. Fantastic customer service fantastic health very automotive, off-road, friendly, and any aftermarket thing for your truck or SUV that they currently have!
JW
Jonathan Word
Aug 25, 2025
★
★
★
★
★
Beefy parts made and painted well, very fair pricing for what you get, and fantastic customer service to boot. Easily my favorite place to get suspension parts.
AP
Ajay Paynter
Mar 9, 2026
★
★
★
★
★
Great company, who worked with me on shipping parts, to arrive in time for a show, when I explained my concern of possibly not getting the control arms in time. Quality is amazing on the part, affordable price for what you get, and the powdercoat is top notch, not a single issue with this product, would buy again.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Vehicle | Jeep Wrangler JL / JLU (18–Present) |
| Brand | Fox |
