Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

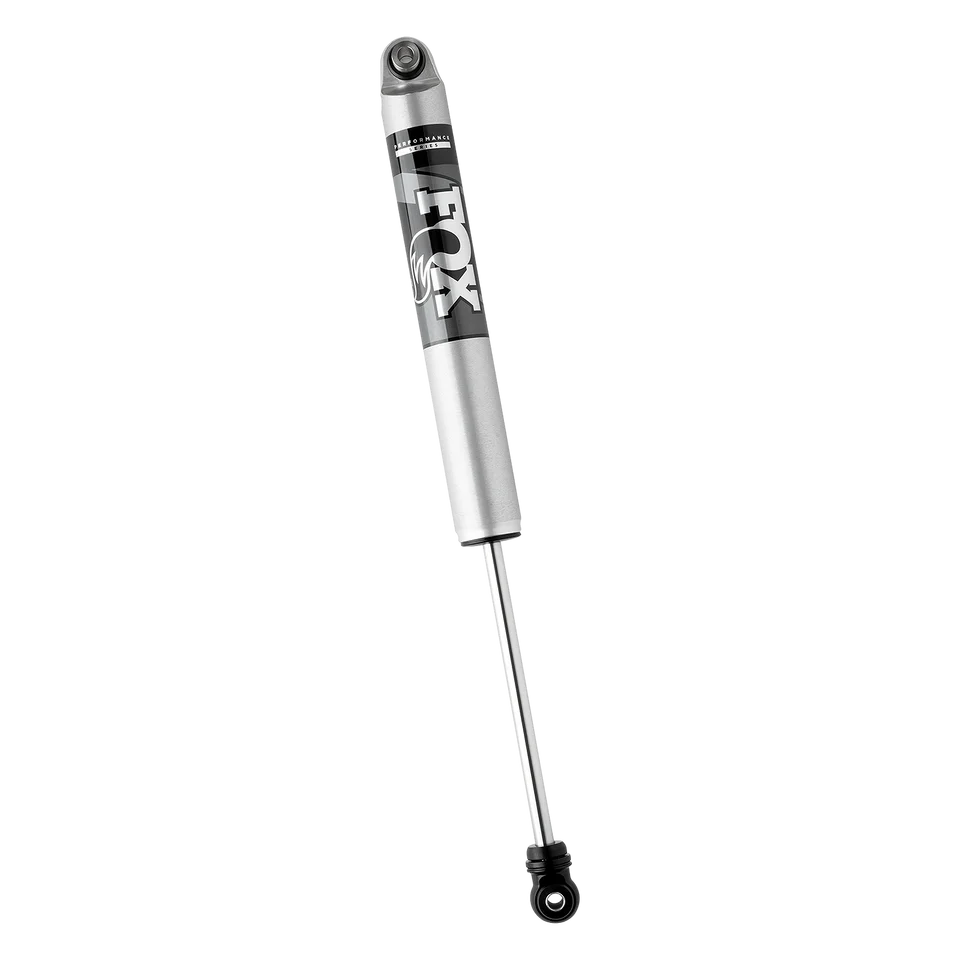

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 26.92
- Compressed - 16.8
- Travel - 10.12
- Top Mount - Eyelet
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 2018 - Present |
| Vehicle | Jeep Wrangler JL / JLU (18–Present) |
| Brand | Fox |
| Placement on Vehicle | Rear |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
GM
George Mar
Sep 24, 2025
★
★
★
★
★
Great company. Highly satisfied with Core 4x4 customer service. Had some bushings fall apart around 600 miles from home. Called and spoke with Korby Linscomb on Thursday, late in the afternoon. He was able to get my bushings sent across country overnight at a very reasonable rate. Had me up and running by Friday evening with enough time to enjoy the Great Smoky Mountain Jeep Invasion. Thanks Guys!
JF
jacob fezza
Mar 24, 2022
★
★
★
★
★
I wanted to take a moment and give these guys a shout out, I’ve currently got, for my xj, their adjustable control arms, tier 4 adjustable track bar and adjustable leaf spring shackles. You can always count on a fair price, high quality products, and quick delivery. Keep up the great work guys, will definitely continue to shop with you
MP
Mirko Pompili
Mar 19, 2026
★
★
★
★
★
I want to share a truly positive experience.
I ordered a car kit consisting of two packages, but unfortunately one was lost during shipping with UPS. The situation could have become complicated... but it didn't.
The company manager was extremely helpful and professional: he personally followed up on the situation and did everything he could to resolve the issue, even sending me the package again without hesitation.
It's rare to find such attentive and reliable customer service these days.
My sincere congratulations on your professionalism and commitment: that makes all the difference.
L
luke
Mar 24, 2021
★
★
★
★
★
Excellent quality product and service. My l lower control arms broke and within the same day core 4x4 hooked me up with tier 2 arms and with the color I wanted. My Jeep rides better and has been solid for several months so far. 10/10 would recommend their products to anyone.
P
Paul
Mar 24, 2023
★
★
★
★
★
I've been having trouble with the track bar (on my 2nd gen Dodge) since I installed the 3rd gen Synergy adapter bracket and a 3rd gen stock bar.. oddly, they call it a '3rd gen bracket' and the stock 3rd gen bar doesn't quite fit, making contact with the bracket. I had attempted to clearance the bracket but it was still making contact and I could feel it over large bumps.
I reached out to a lot of companies, but Core 4x4 offered to make a custom bar for the application with adjustability and dual Johnny joints. The first pass on it didn't work but they sent me out another passenger side end that made it fit incredibly well.
This was all done solely over email/descriptions/pictures/measurements.
Bar is super high quality and heavy duty, made in the US by a family owned company and carries a lifetime warranty. The customer service was responsive and superb, and the price was a lot less than I expected.
BW
Brian Wadsworth
Jun 26, 2025
★
★
★
★
★
Amazing product! Shipping was quick, packaging was great and support was outstanding!!
AP
Ajay Paynter
Mar 9, 2026
★
★
★
★
★
Great company, who worked with me on shipping parts, to arrive in time for a show, when I explained my concern of possibly not getting the control arms in time. Quality is amazing on the part, affordable price for what you get, and the powdercoat is top notch, not a single issue with this product, would buy again.
OA
Owen Adams
Sep 24, 2025
★
★
★
★
★
These guys are awesome I messed up my address on my order somehow and they were so so helpful Korby was right there every step to a solution very communicative and respectful I will definitely be ordering parts with them in the future!
DS
Dana Smith
Jul 26, 2025
★
★
★
★
★
Excellent, strong, and durable products—perfect for both on-road and off-road applications. The customer service is outstanding—friendly, knowledgeable, and extremely helpful with understanding installation and ensuring I got exactly what I needed. I would definitely order again. Top-notch company with high-quality products made right here in the U.S.A.
GN
Glenn Nowosad
Jan 22, 2026
★
★
★
★
★
I just finished installing the Peak 2.0 Front Suspension system with the Core 4x4 Blue Tacoma Rear Suspension system on my 2024 TRD Offroad Premium Tacoma. The two upgraded suspension systems really made a difference in how the ride feels, whether we’re off-road or on the road. A big thank you to Korby and the team at Core 4x4 for their support and for getting the shipping sorted out so quickly!
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Vehicle | Jeep Wrangler JL / JLU (18–Present) |
| Brand | Fox |
