Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

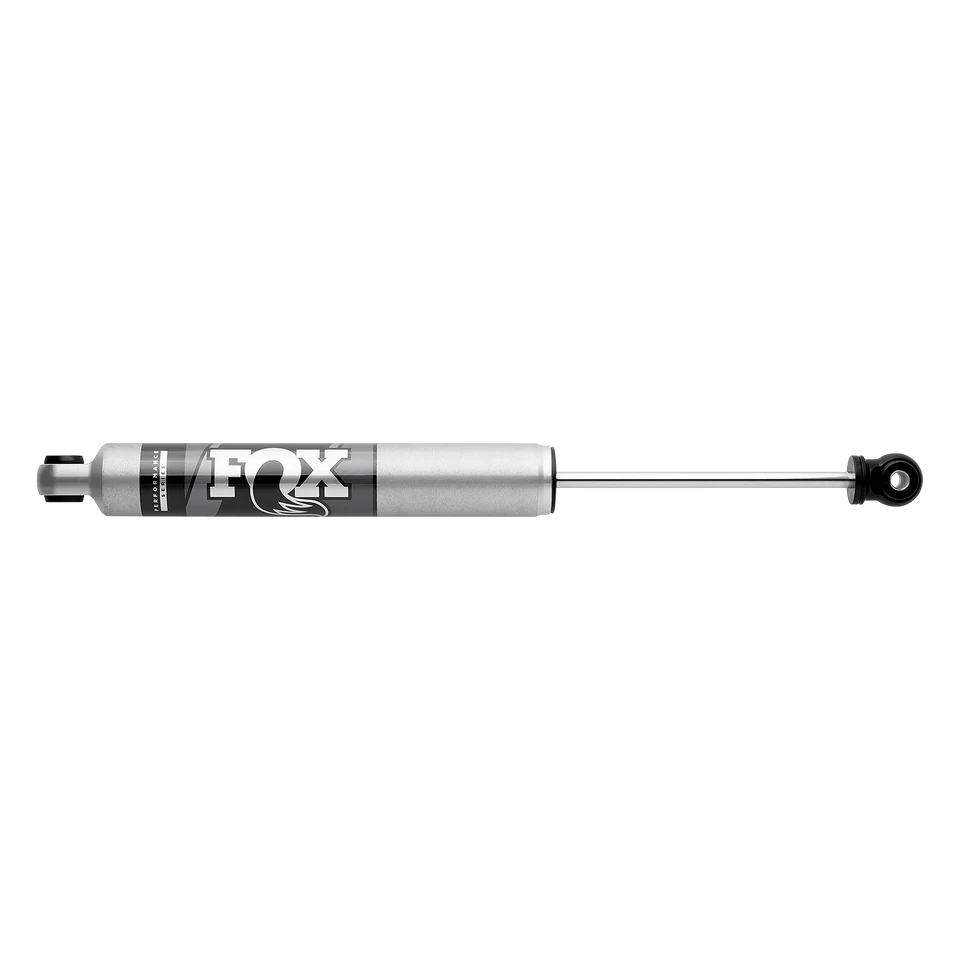

- Features - Performance tuned for vehicle specific application; Aluminum body dissipates heat faster than steel; IFP separates oil from high-pressure nitrogen gas; Black anodized cnc machined aluminum components.
- Series - Performance
- Travel - 8.65
- Body - 2.0" Impact extruded and cnc machined 6061-T6 clear anodized aluminum-one piece body resists rust over time.
- Shaft - 1/2" Hard chrome plated heat-treated alloy steel.
- Piston - Race-developed high-flow piston design.
- Valving - Application specific valving to maximize performance.
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended Length - 24.25
- Compressed Length - 15.6
- Top Mount - Eyelet
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Ram | 2500 | 2003 - 2007 | |
| Ram | 2500 | 2008 - 2009 | |
| Ram | 2500 | 2010 - 2013 | |
| Ram | 3500 | 2003 - 2007 | |
| Ram | 3500 | 2008 - 2009 | |
| Ram | 3500 | 2010 - 2012 | |
| Ram | 3500 | 2010 - 2013 | |
| Ram | 3500 | 2013 - 2024 |
| Vehicle | Ram HD 3500 (13–24) or Ram HD 2500 (03–07) or Ram HD 2500 (08–09) or Ram HD 2500 (10–13) or Ram HD 3500 (03–07) or Ram HD 3500 (08–09) or Ram HD 3500 (10-12) or Ram HD 3500 (10-13) |
| Brand | Fox |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
LS
Leonard Smith
Jan 22, 2026
★
★
★
★
★
I don’t write reviews often, but Core 4x4 absolutely earned this one.
I recently ordered leaf spring mounts and realized after the fact that I messed up my order. Totally my mistake. Instead of giving me the runaround or pointing at a return policy, Core 4x4 emailed me back and forth, worked through exactly what I was doing with my build, and made sure I ended up with the correct parts.
That kind of customer service is rare these days — especially in the off-road world where a lot of companies stop caring once the order is placed.
The parts themselves are exactly what you hope for: solid, well-made, confidence-inspiring hardware that looks like it belongs under a vehicle that actually gets used. You can tell these are designed by people who understand suspension geometry and real-world abuse, not just CAD screenshots.
Mistakes happen — especially on custom or modified builds — and Core 4x4 handled mine like pros. Fast responses, clear communication, and a genuine effort to help me get it right.
If you’re on the fence: don’t be. Core 4x4 is the kind of company you want backing your build — the kind that treats customers like fellow enthusiasts, not order numbers.
BC
Brad C
Mar 24, 2021
★
★
★
★
★
Outstanding experience! I asked Core to build me a set of custom control arms that were larger/heavier than they normally build. They gladly accepted the challenge and turned out an expertly crafted and super strong product ahead of schedule. Fit and finish are excellent. Spence and Cameron were a pleasure to work with every step of the way. And all of this for a very reasonable price. I highly recommend these guys!
RC
Ryan Colligan
Mar 4, 2026
★
★
★
★
★
I have nothing but good things to say about Core 4x4. I have the crawler series on my JKU and we take it all over the place. These parts handle everything we throw at them.
K
Korosunagi
Jul 26, 2025
★
★
★
★
★
I broke a grease fitting off in my end link. I thought I was going to have to buy a new one. Reached out to Core 4x4 and wham! bam! They fixed it and sent it back with 2 day shipping. Got it a day early even. If they couldn't fix it they were going to send me a new one. Now that's customer service! They are now a permanent part of my garage.
Thank you Core 4x4!
RM
R2d2 Movi78
Feb 21, 2026
★
★
★
★
★
I’m extremely impressed with Core 4x4. The quality of their parts is outstanding — everything feels solid, well‑built, and engineered with real attention to detail. Shipping was fast and everything arrived perfectly packaged. Their customer service is just as good as their products: responsive, helpful, and genuinely committed to making sure you get exactly what you need.
Overall, a top‑tier experience. I’ll definitely be buying from them again. Specially thank you Mr. Linscomb from Core 4x4. Arturo M.
TR
Tim Reigies
Mar 25, 2018
★
★
★
★
★
Received the track bar I ordered, product looks extremely strong, thx core 4x4
SG
Sal Giordano
Sep 24, 2025
★
★
★
★
★
I want to take the time to share my experience with Core 4x4.
I have a 2004 Jeep Wrangler and was looking to upgrade some suspension parts. I went with Core 4x4 upper & lower adjustable control arms and a front adjustable track bar. Everything arrived quickly, and right out of the box I was impressed with the quality and craftsmanship.
I had a few questions during installation (measurements and torque specs), and I spoke with Korby on a couple of occasions. Not only did he send me detailed instructions, but he also shared an installation video specific to the part and vehicle I was working on, something you don’t get from many companies.
The control arms fit perfectly, look great, and perform exactly as I hoped. I did run into an issue with the front track bar touching the front diff. When I reached out, Korby had me send pictures and then immediately offered two solutions: his bar guy could make a different bend and send it out to me, or I could get a full refund. His response honestly blew me away. As much as I wanted to run the Core 4x4 track bar, I chose the refund. Korby sent me a prepaid shipping label right away, no hassle.
My experience with Core 4x4 has been excellent. Korby was extremely understanding, communicative, and helpful every step of the way. The parts I received were high quality, and the customer service was second to none.
I would absolutely recommend Core 4x4 10 out of 10 times and will be using them again. Just a great American company with awesome people who truly care about their customers.
Thank you Korby, and thank you Core 4x4!
BA
bryan angell
Jun 26, 2025
★
★
★
★
★
First off amazing products. I got a set of adjustable control arms for my XJ and it is so nice to be able to dial in caster and pinion angles. A quick call and I was able to purchase an adjustable track.
JT
jacob trice
Apr 27, 2025
★
★
★
★
★
Core 4x4 has outstanding products at a fair price and unmatched customer service. When you call Korby, it's like talking with a friend. Very cool and helpul!
I ordered some custom control arms, but from the wrong product line and they were super cool about returning them and upgrading to a better "Crawl" series. Only charged the difference between the two products. They paid all the return shipping and sent the uprgaded arms super quick. It was only a couple days. Awesome!!
I couldn't be happier with the transaction👍🏼
Also, these control arms are stout and take a beating. I run heck out my Jeep in the rocks and desert. No problems whatsoever.
Thanks Core 4x4, ya'll are welcome at my campfire anytime!
Jake T.
Pleasant Hill, Or.
CD
Christopher Dami
Jun 26, 2025
★
★
★
★
★
2022 I ordered a 2023 Jeep Wrangler Rubicon in High Velocity yellow. Without any hesitation I knew I was going with Core 4x4’s 16pc Camp series suspension, powder coated in yellow. Compliments were a given from any and everyone that looked under my jeep. So beefy, I may have left some yellow paint on the rocks from Maine to Florida, but no bends or breaks. Customer service has been perfect each and every time I have needed something. Their warranty is top notch! Their communication is also wonderful. Might upgrade to the Crawl Series control arms where the Johnny joints are on both sides. Great all around company and a great team to troubleshoot your issue and come to a conclusion. Nothing bad to say about this company. Just love this suspension.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Vehicle | Ram HD 3500 (13–24), Ram HD 2500 (03–07), Ram HD 2500 (08–09), Ram HD 2500 (10–13), Ram HD 3500 (03–07), Ram HD 3500 (08–09), Ram HD 3500 (10-12), Ram HD 3500 (10-13) |
| Brand | Fox |
