Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

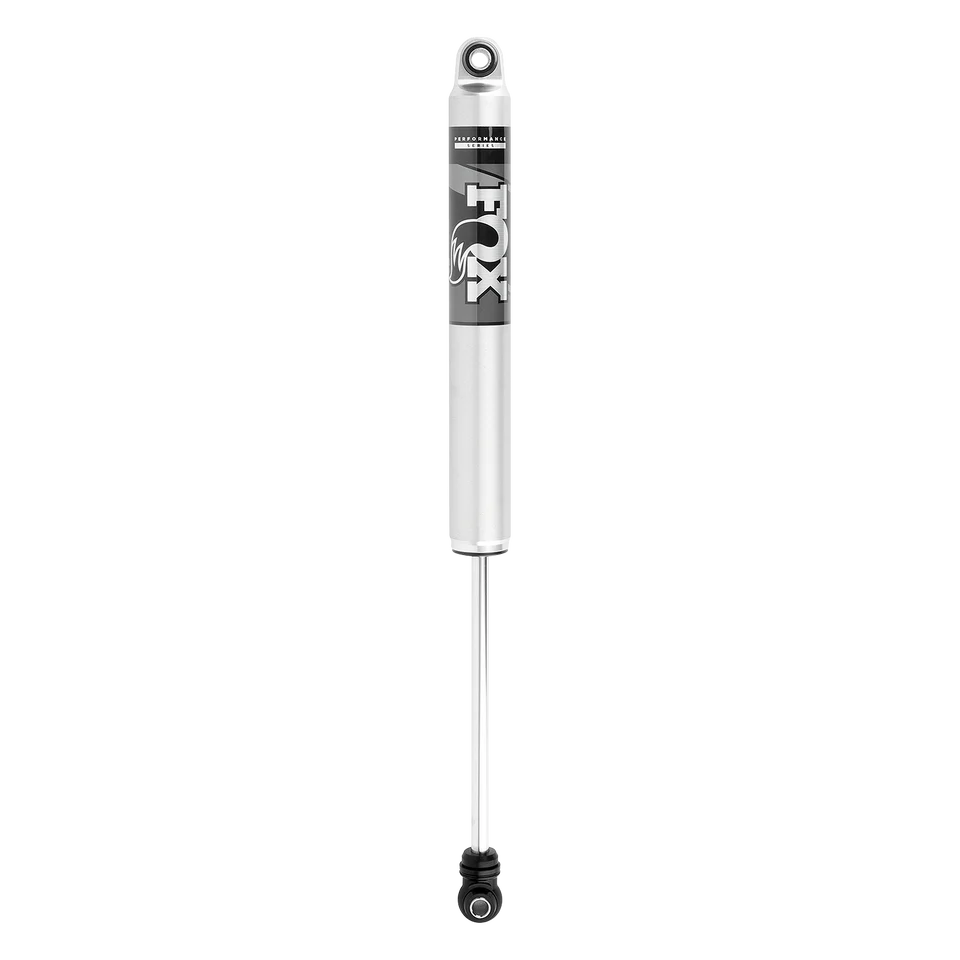

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 29.61
- Compressed - 18.5
- Travel - 11.11
- Top Mount - Eyelet
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Comanche | 1986 - 1992 |
| Brand | Fox |
| Placement on Vehicle | Rear |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
OK
oleg k
Nov 23, 2025
★
★
★
★
★
I recently ordered a set of control arms from Core 4x4, and the entire experience was absolutely top-notch from start to finish. The ordering process was smooth, the parts arrived quickly, and the control arms themselves are extremely high quality—solid construction, great finish, and clearly built to last.
I also want to give a special shout-out to Korby, the guy I spoke with during the process. His customer service was amazing. He went above and beyond to make sure I got exactly what I needed, answered all my questions, and made the whole experience stress-free. You don’t see service like that very often these days.
If you’re looking for high-quality suspension components backed by truly exceptional customer service, I highly recommend Core 4x4. I’ll definitely be buying from them again.
MT
Ma TheMeatLoaf
Mar 23, 2024
★
★
★
★
★
Their website estimated 2 days to get my parts but actually took 11. No communication to let me know what’s going on. Parts were missing. Some days they answer questions, some they don’t. Didn’t let me know I’d have to alter stock bolts to fit their parts.
All around just seems like they don’t care.
CM
Cameron Masters
Mar 24, 2023
★
★
★
★
★
Absolutely incredible family owned business. I asked to pick up my order since I’m local and they came in on a weekend to accommodate. Had to make some adjustments to parts and took the time to make sure it was perfect. Parts are incredible quality. If you have a Jeep, do not hesitate to support this local business.
D
David
Nov 23, 2025
★
★
★
★
★
First of I just want to say Great customer service korby Has helped me from the start and has not let me down! Reached out to him again today and he was able to warranty some parts out for me.
As far as the quality of the parts.. excellent! The build quality is great. I can definitely tell a
Difference from the cheap oem rear control arms to these and the pan hard bar.
Color, From what I can tell it’s super durable been through a few mud holes on top of the daily road grime and after a quick wipe they still pop!
Overall I recommend. Customer service is everything for me and it’s definitely there at Core 4x4.
J
Justin
Mar 24, 2021
★
★
★
★
★
Small business, family owned, made in the USA, lifetime warranty. Purchased Tier 3 control arms and rear track bar for a 2006 Jeep LJ. Simple website and easy to contact over phone and email. I had some technical questions and they were happy to answer them. They allow local pickup and were built to order same week. The order was wrapped and ready when I walked in and even gave a tour of the shop. They abrasive blast all raw materials to achieve a better surface profile for powdercoat to adhere and create a smooth, durable finish. I also noticed several CNC machines and a robotic welder they use for all their parts. A small outfit with a robotic welder? Their concern for quality is obvious and it shows in the parts they make. Very impressed. Happy to do business with these guys.
JS
Jon Stempien
May 27, 2025
★
★
★
★
★
Big thanks to Corby at core 4 x 4 outstanding customer service I like to thank them or 4 x 4 for helping me Well-made product in the United States recommend core 4 x 4 for all jeep Owners that like the four wheel
AP
Ajay Paynter
Mar 4, 2026
★
★
★
★
★
Great company, who worked with me on shipping parts to arrive in time for a show. When I explained my concern they went above and beyond to make it happen. Quality of the parts is top notch.
JT
jacob trice
Apr 27, 2025
★
★
★
★
★
Core 4x4 has outstanding products at a fair price and unmatched customer service. When you call Korby, it's like talking with a friend. Very cool and helpul!
I ordered some custom control arms, but from the wrong product line and they were super cool about returning them and upgrading to a better "Crawl" series. Only charged the difference between the two products. They paid all the return shipping and sent the uprgaded arms super quick. It was only a couple days. Awesome!!
I couldn't be happier with the transaction👍🏼
Also, these control arms are stout and take a beating. I run heck out my Jeep in the rocks and desert. No problems whatsoever.
Thanks Core 4x4, ya'll are welcome at my campfire anytime!
Jake T.
Pleasant Hill, Or.
Z
Zion
Sep 24, 2025
★
★
★
★
★
Every product I have received from them has been nothing short of fantastic. Korby in Customer service went above and beyond to help me fix my own mistake. I cannot reccomend them enough.
JJ
JT JT
Dec 23, 2025
★
★
★
★
★
We have all shopped places where the person on the phone makes you feel like they don't have the time to talk to you the customer or answer your questions. I can tell you first hand that's not Core 4x4. They have the best customer service I have seen so far. They have taken the time to respond to all of my questions in a very prompt and professional manner, taking the time to answer each and every question I have had. Lets put it this way if Core 4x4 sells a product I am wanting for my truck I will buy it from them, I highly recommend Core 4x4.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Brand | Fox |
