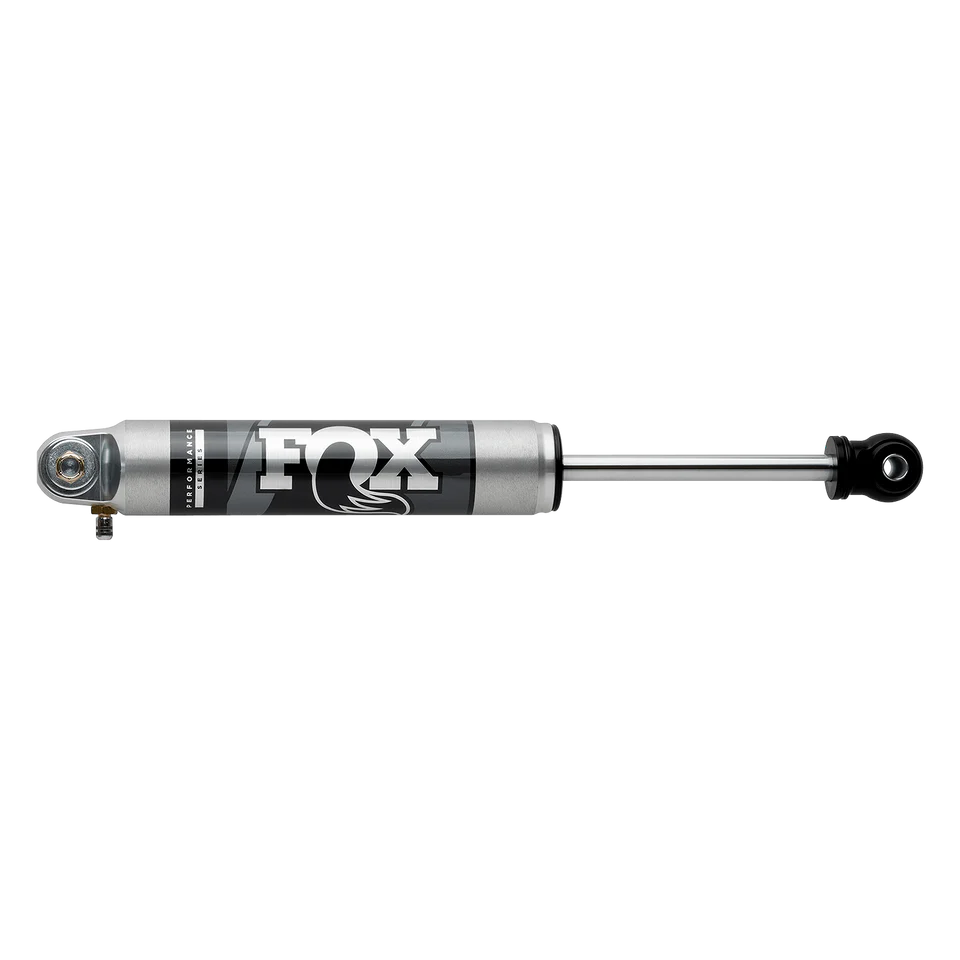

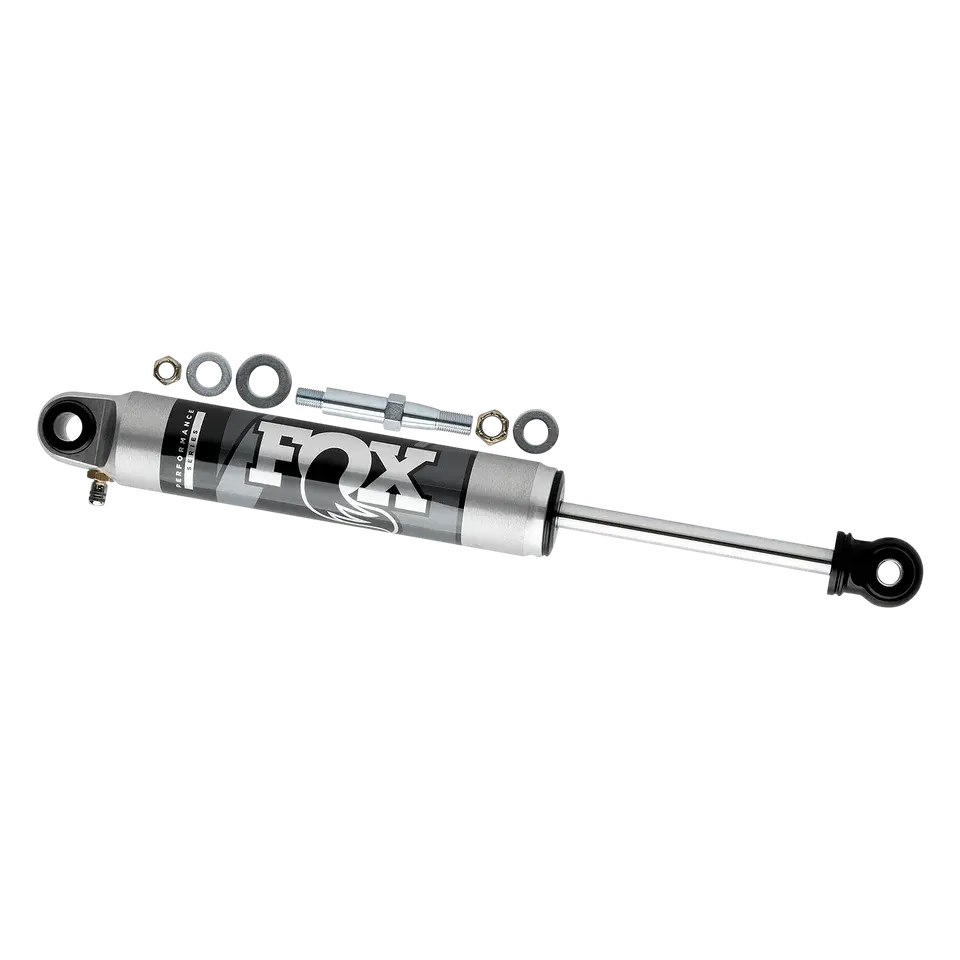

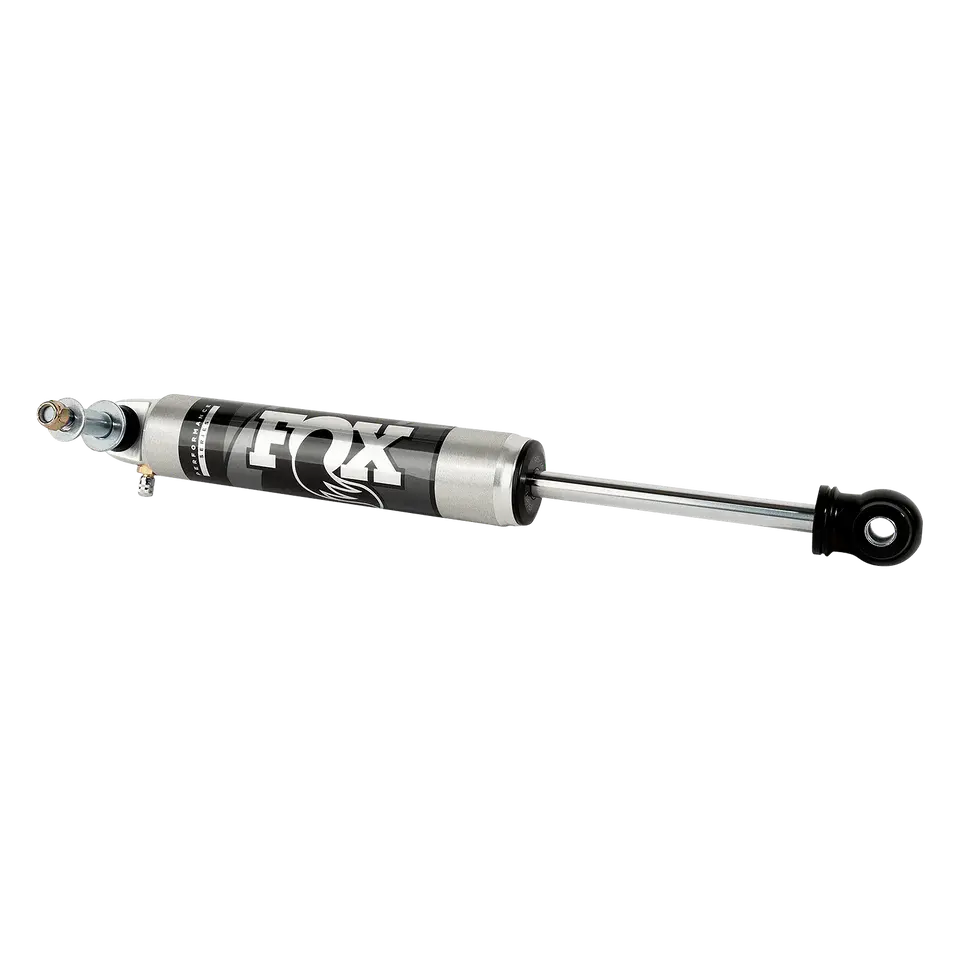

- Features - Performance tuned for vehicle specific application; Aluminum body dissipates heat faster than steel; IFP separates oil from high-pressure nitrogen gas; Black anodized cnc machined aluminum components.
- Series - Performance
- Travel - 6.22
- Body - 2.0" Impact extruded and cnc machined 6061-T6 clear anodized aluminum-one piece body resists rust over time.
- Shaft - 1/2" Hard chrome plated heat-treated alloy steel.
- Piston - Race-developed high-flow piston design.
- Valving - Application specific valving to maximize performance.
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended Length - 18.62
- Compressed Length - 12.4

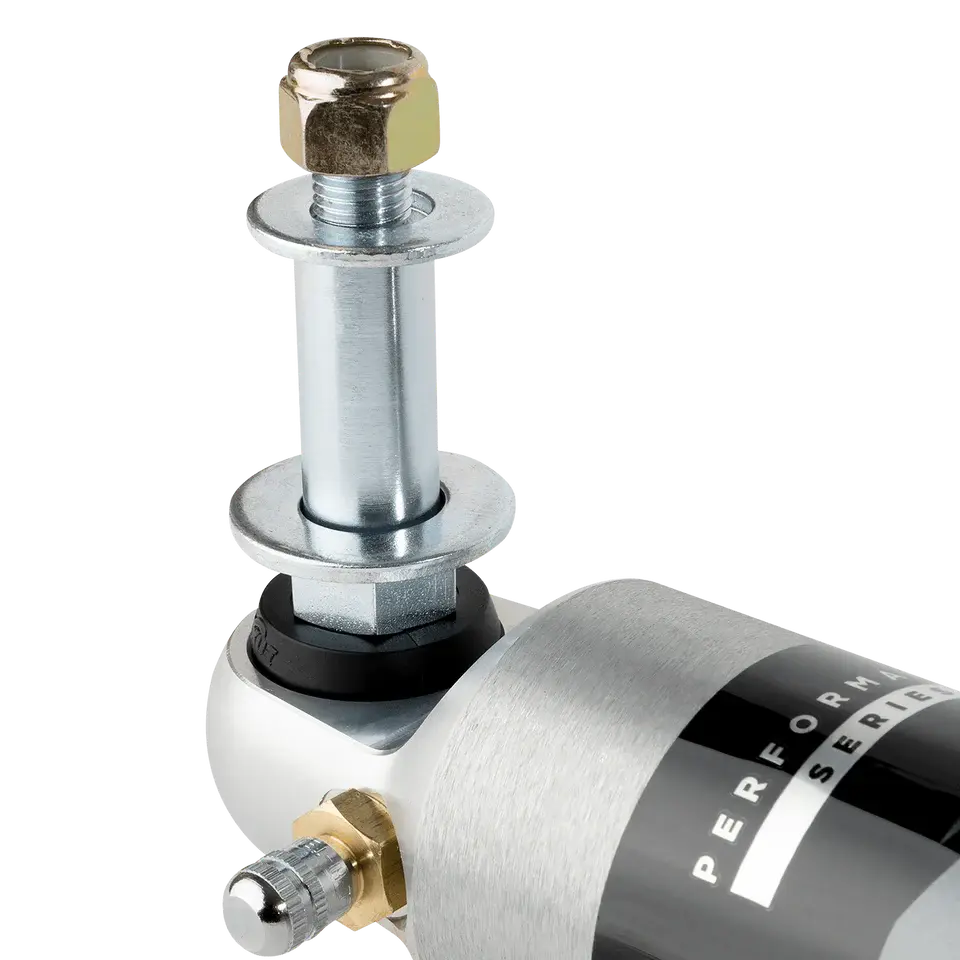

- Top Mount - Eyelet
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Cherokee | 1984 - 2001 | |
| Jeep | Comanche | 1986 - 1992 | |
| Jeep | Grand Cherokee | 1993 - 1998 | |
| Jeep | Wrangler | 1997 - 2006 | |
| Jeep | Wrangler | 2004 - 2006 |
| Vehicle | Jeep Wrangler TJ (97–06) or Jeep Wrangler LJ (04–06) or Jeep Cherokee XJ (84–01) or Jeep Comanche MJ (86–92) or Jeep Grand Cherokee ZJ (93–98) |
| Brand | Fox |
