Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

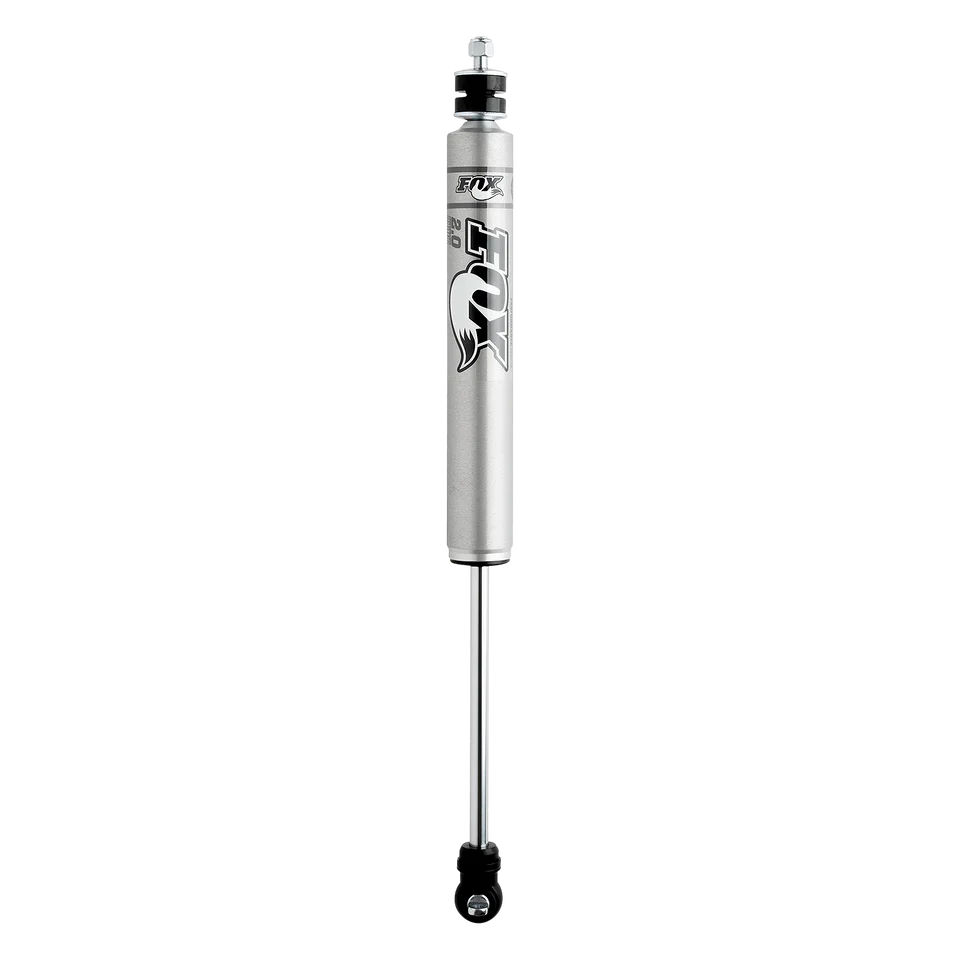

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 25.48
- Compressed - 15.85
- Travel - 9.63
- Top Mount - Stem Top
- Bottom Mount - BP1
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 1997 - 2006 | |
| Jeep | Wrangler | 2004 - 2006 |
| Brand | Fox |
| Placement on Vehicle | Front |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
BS
Bailey Smith
Mar 23, 2025
★
★
★
★
★
Core 4x4 excels with precision and service and keeps nothing else higher in mind. Everyone I've met at the company is very honest and down to earth, 10/10 would recommend.
DA
Dastrup Auto
Mar 25, 2019
★
★
★
★
★
I have bought a bunch of sets of arms, track bars and even had custom work done by Core 4x4. Just yesterday, Spence and Cam delivered an awesome cross member they designed and built for me! All of their products have been exceptional! I have personally seen their progression with design changes/updates. They truly take pride in their work and products. Quality control is second to none! They’ve also helped me diagnose issues with different jeeps I’ve had, as well as Dodge/Rams. These guys know their stuff! Really! I trust them whole heartedly and absolutely love their products/quality of work! I’ve referred many people, and will always continue to do so. Keep up the good work Core4x4!
D
Danny
Oct 24, 2025
★
★
★
★
★
Outstanding customer service to match the high quality parts. This is the go-to company.
L
luke
Mar 24, 2021
★
★
★
★
★
Excellent quality product and service. My l lower control arms broke and within the same day core 4x4 hooked me up with tier 2 arms and with the color I wanted. My Jeep rides better and has been solid for several months so far. 10/10 would recommend their products to anyone.
MM
Mike Martinez
Aug 25, 2025
★
★
★
★
★
Phenomenal company - very rare to come by in the automotive industry. Also very impressing. Let me start here. I got a set of yellow sway bar end links for my 19 ram DT (new body style) and let me tell you, I’m hooked. For numerous reasons. One the craftsmanship behind the product is unmatched for sure for without breaking the bank. 2ndly, they stand behind their product. Had a very minor issue and it was resolved in a blink of an eye!!! Insane. Just because of what i listed above i will forever spend my money with core 4x4! And i think you should too! I have no affiliation at all with this company besides being a consumer. I will be ordering my yellow UCAs and the rest of my rear suspension from them here shortly!
Korby on the other hand. The representative that helped me went above and beyond FAST. I hung up the phone with him, and with in no lie 3 minutes he was calling back with an answer. GREAT GREAT GREAT customer service, Korby you and core 4x4 are what give us hope in the car community! With much love and great health to you all!!
PB
Peter Busack
May 27, 2025
★
★
★
★
★
Purchased a set of Trailing arms for my Ram 1500, quality is first class. I bought the ones with the Jonny Joints for more articulation and it appears from the construction I should get a lifetime of use, Zerk fittings are an added plus. Would defiantly recommend, and the the service team answered all of my questions.
GV
Gil Valk
Sep 24, 2025
★
★
★
★
★
Excellent service, Prompt responses when needing technical assistance, Amazing looking parts that fit excellently. I would recommend them to anyone looking for suspension components. Also very well packaged when we received the shipment, which means no damage from shipping company!! We went with the Crawl Series double adjustable kit and it definitely looks killer on our build!!!
SA
Samuel “SamDaman904” Anscher
Mar 23, 2024
★
★
★
★
★
I meant to put this reviewing about a year ago now, but ever since I’ve had the core 4 x 4, upper and lower control arms on my 2017 ram 1500, they have worked flawlessly leave been on many offering chips, and I’ll definitely be buying new accessories from them in the future and their new upper control arms that they’re offering for all of the ram trucks. Fantastic customer service fantastic health very automotive, off-road, friendly, and any aftermarket thing for your truck or SUV that they currently have!
JI
Jerome Segura III
Jun 26, 2025
★
★
★
★
★
I bought the 16pc Cruise Series Adjustable Control Arm, Track Bar, Steering, End Link Kit to replace a worn budget 4" lift on my used JKU. These are top quality parts; very solid. Customer service is unsurpassed. They even matched prices on my order placed before the tax day sale. I made an error in ordering a drag link flip kit; they were quick to help me fix this too. There's peace of mind knowing these components are made in the USA. Thank you. 👍👍
JL
John Luna
Nov 23, 2025
★
★
★
★
★
Great team, and help to support my jeep and provide best stuffs
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Brand | Fox |
