Made in USA
Orem, Utah
Lifetime Guarantee
Unconditional
10 Colors
In-house powder coat
Fully Adjustable
0-6" of lift
3 X-Series Options
Only Core 4x4

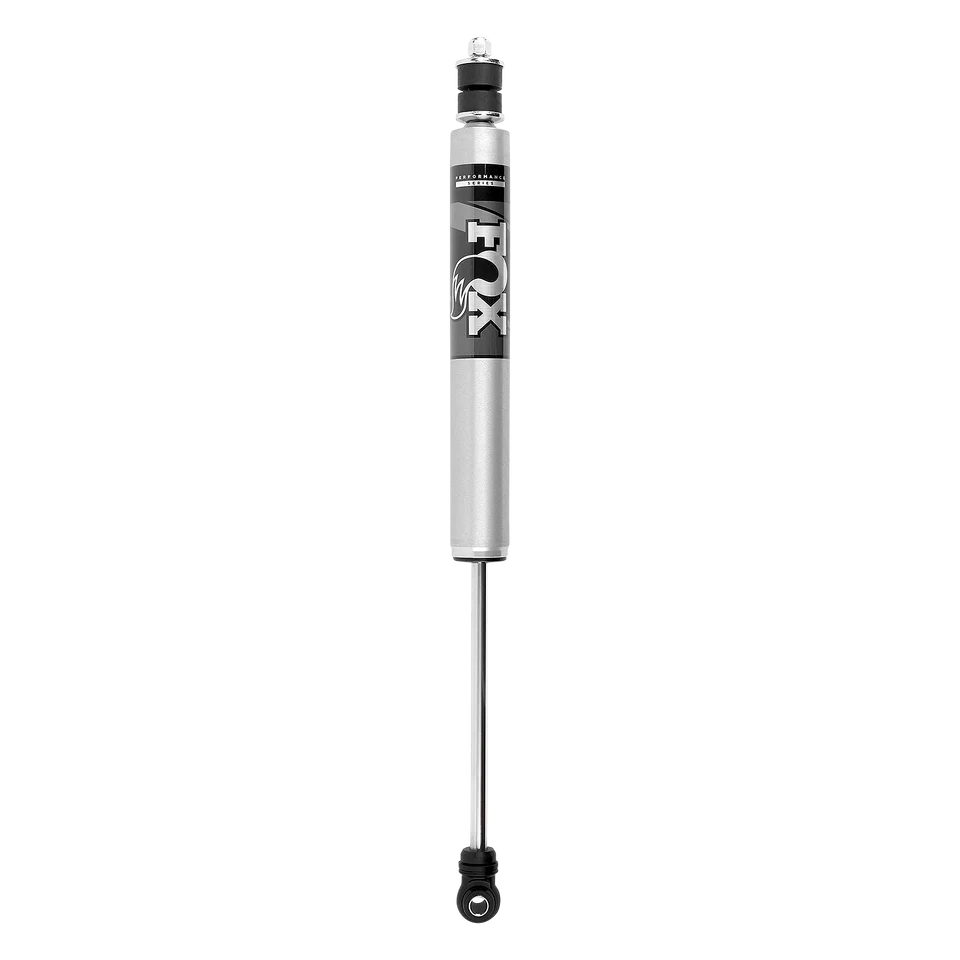

The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
- Body - 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
- Body Plating - Clear-anodized for a durable finish
- Components - Black-anodized, CNC-machined 6061-T6 billet aluminum
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Piston - Race-developed high-flow piston design
- Valving - Application specific valving to maximize performance
- Seals - Redundant sealing pack system main seal, wiper seal, scraper seal
- Extended - 28.57
- Compressed - 17.45
- Travel - 11.12
- Top Mount - Stem Top
- Bottom Mount - Eyelet
| Make | Model | Submodel | Years |
|---|---|---|---|
| Jeep | Wrangler | 2007 - 2018 |
| Brand | Fox |
| Placement on Vehicle | Front |
| Mounting Style | Bolt-On |
Reviews of Core 4x4
5.0
★
★
★
★
★
132 reviews
CL
Colten Lockwood
Mar 25, 2019
★
★
★
★
★
Recieved warrenty exchanges for my control arms last night couldnt be happier!!! Lets talk about the arms tho! Great quality arms in multiple styles and colors!!! I purchased the teir 3 short arns for my 98 xj. I can say that they setoff nicely so my 35 inch tires do not rub! As long as you can get a photo or video of broken hardware core will take care of you. The body of the arm is bulletproof. However make sure to maintain and grease the joints regularly as with any greaseable joint and they shouldkast forever. I had a few problems arise a year after purchase and after some troubleshooting spence was able to help get me the correct parts to get back on the road. I recommend this setup to any and all jeepers looking to get away from the stock arm setup. Alltogether i am Very happy with the performace of my control arms!!!! Mechanic and bodyman of 12 years and my first choice for quality control arms!!
DA
Dastrup Auto
Mar 25, 2019
★
★
★
★
★
I have bought a bunch of sets of arms, track bars and even had custom work done by Core 4x4. Just yesterday, Spence and Cam delivered an awesome cross member they designed and built for me! All of their products have been exceptional! I have personally seen their progression with design changes/updates. They truly take pride in their work and products. Quality control is second to none! They’ve also helped me diagnose issues with different jeeps I’ve had, as well as Dodge/Rams. These guys know their stuff! Really! I trust them whole heartedly and absolutely love their products/quality of work! I’ve referred many people, and will always continue to do so. Keep up the good work Core4x4!
NM
Noah Myers
Mar 23, 2024
★
★
★
★
★
I contacted these guys on a Saturday through email and needed some control arms by the following weekend, Spence got back with me and told me he would make sure the order got shipped out on Monday, they got busy and wasn’t able to ship the package out so he got back with me that evening and upgraded my shipping for free and shipped out the next day, only because he told me he’d make sure I’d have them by the weekend! This company sticks to their word! The customer service from these guys are unmatched and they will have another lifetime customer here!
JT
jacob trice
Apr 27, 2025
★
★
★
★
★
Core 4x4 has outstanding products at a fair price and unmatched customer service. When you call Korby, it's like talking with a friend. Very cool and helpul!
I ordered some custom control arms, but from the wrong product line and they were super cool about returning them and upgrading to a better "Crawl" series. Only charged the difference between the two products. They paid all the return shipping and sent the uprgaded arms super quick. It was only a couple days. Awesome!!
I couldn't be happier with the transaction👍🏼
Also, these control arms are stout and take a beating. I run heck out my Jeep in the rocks and desert. No problems whatsoever.
Thanks Core 4x4, ya'll are welcome at my campfire anytime!
Jake T.
Pleasant Hill, Or.
MB
Melody Baker
Jan 22, 2026
★
★
★
★
★
I ordered a part for my 03 Jeep TJ and all I can say is wow! Korby at Core 4x4 is a total rockstar!! There was a glitch with my payment and within minutes, Korby reached out to me to get it fixed, then sent my receipt with the tracking number. I lost the number and reached out to him during the Holidays and got a rapid response with the number again. I can’t say enough about the customer service and the quality of parts. Thank you!!
MM
Mike Martinez
Aug 25, 2025
★
★
★
★
★
Phenomenal company - very rare to come by in the automotive industry. Also very impressing. Let me start here. I got a set of yellow sway bar end links for my 19 ram DT (new body style) and let me tell you, I’m hooked. For numerous reasons. One the craftsmanship behind the product is unmatched for sure for without breaking the bank. 2ndly, they stand behind their product. Had a very minor issue and it was resolved in a blink of an eye!!! Insane. Just because of what i listed above i will forever spend my money with core 4x4! And i think you should too! I have no affiliation at all with this company besides being a consumer. I will be ordering my yellow UCAs and the rest of my rear suspension from them here shortly!
Korby on the other hand. The representative that helped me went above and beyond FAST. I hung up the phone with him, and with in no lie 3 minutes he was calling back with an answer. GREAT GREAT GREAT customer service, Korby you and core 4x4 are what give us hope in the car community! With much love and great health to you all!!
DW
Derek Whitfield
Nov 20, 2025
★
★
★
★
★
Solid product, the lifetime warranty sealed the deal for me. Installed on my TJ and the ride quality improved noticeably. Shipping took a bit longer than expected but the parts were worth the wait.
P
Paul
Mar 24, 2023
★
★
★
★
★
I've been having trouble with the track bar (on my 2nd gen Dodge) since I installed the 3rd gen Synergy adapter bracket and a 3rd gen stock bar.. oddly, they call it a '3rd gen bracket' and the stock 3rd gen bar doesn't quite fit, making contact with the bracket. I had attempted to clearance the bracket but it was still making contact and I could feel it over large bumps.
I reached out to a lot of companies, but Core 4x4 offered to make a custom bar for the application with adjustability and dual Johnny joints. The first pass on it didn't work but they sent me out another passenger side end that made it fit incredibly well.
This was all done solely over email/descriptions/pictures/measurements.
Bar is super high quality and heavy duty, made in the US by a family owned company and carries a lifetime warranty. The customer service was responsive and superb, and the price was a lot less than I expected.
CL
Cade Leith
Mar 23, 2024
★
★
★
★
★
Have full upper/lower CA set on both front and rear axles on a 96 ZJ. These are the rubber bushing sets not joint sets. I have beat the hell out it in the Nevada desert for 2 years and has been great. I don’t go fast but I do articulate suspension a lot. Super solid and haven’t any issues. Just inspected the entire set recently due to some banging under it. Turns out the banging is lower rear shock bushings. Inspected each CA along the way nothing. Aside from dirt and obviously winter roads and what not still in excellent condition, bushings are solid like the day they were installed. I’ll add that I’m about tapped on a short arm at 4.25(less with settle) so the front CA’s get beat on just from that, still they’re like new. Paint is great condition, this set is red. I would definitely buy again. Another plus for me, Utah isn’t local necessarily, but it’s nice to support businesses closer to me.
AL
Andrew LaFave
May 27, 2025
★
★
★
★
★
I am really please with this company. Great product, i had an issue with a couple of the jonnhy joint bushings, they explained what had caused it and how to fix it. Within hrs of receiving my inquiry, i had heard back with the required info I needed. A couple hrs later problem was fixed and ready for the trail again. They care about heir product and their customers. Thanks crew, you rock
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Brand | Fox |
